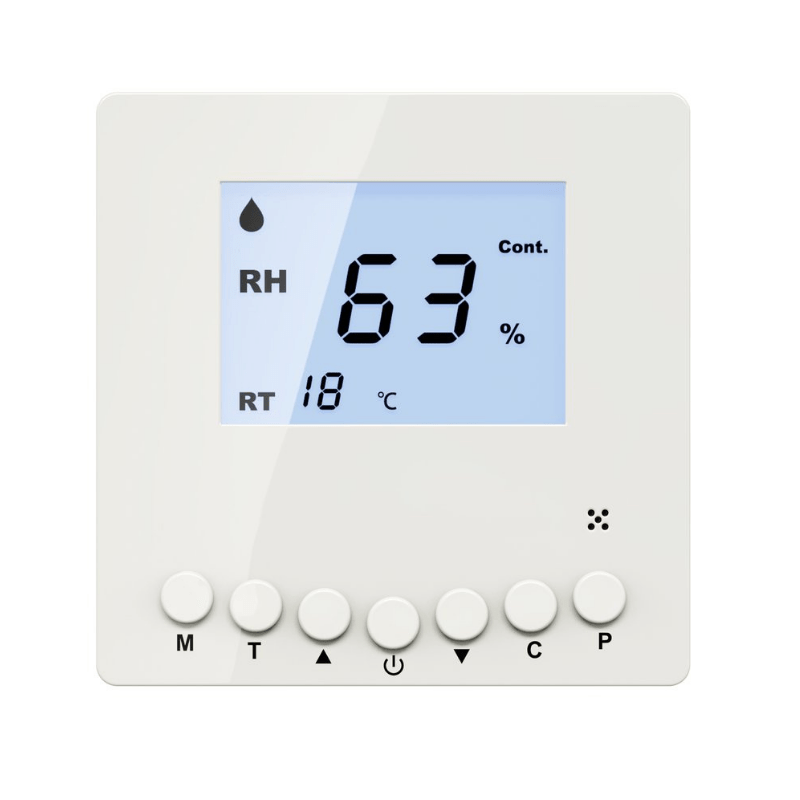

AlorAir® Remote Controller for Digital Humidity Temperature Drain Pump Control for Crawl space basement dehumidifier HD55, HD90, HDi90, HDi100, HDi120, SLGR 1400X
Sentinel Dehumidifiers can be controlled using an optional remote accessory. The Sentinel Remote Control connects to your Sentinel Series Dehumidifier via a 25’ CAT 5 cable.
The remote control contains an integrated sensor that gives you multiple options for remotely controlling your unit, in addition to monitoring the conditions surrounding the dehumidifier.
There are 2 ways to use the remote control:
One application for the remote control is to install the dehumidifier in one room with the conditioned air ducted into a second room that contains the remote. For example, the dehumidifier could be installed in a laundry room and ducked into a living room. The remote would then be mounted in the living room so the remote sensor can control the humidity and provide easy controls for the user.

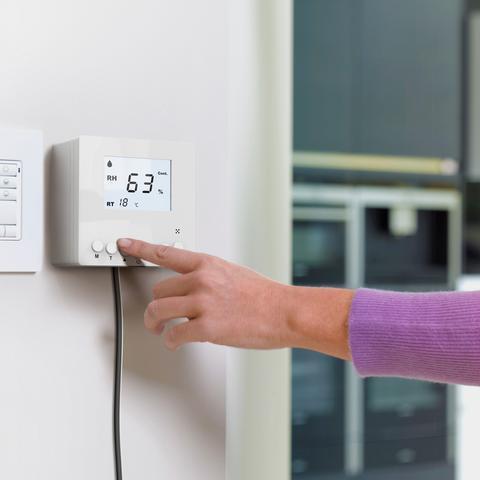

Another useful application for the remote control is if the dehumidifier is in an area that’s difficult to access on a regular basis. For instance, if your dehumidifier is installed in your crawl space, the remote could be mounted in your living space or garage. This provides you with an easy way to monitor the dehumidifier.
The remote controller connects to the dehumidifier via a 25' CAT 5 cable. In addition to monitoring surrounding conditions, the remote control contains an integrated sensor that offers multiple options for remote controlling your unit.
(Series 1) (Series 2)
When the back of the controller you receive is shown in figure (Series 2), the controller you receive is Series 2.
You can switch the optional remote control by mode, which is suitable for different ALORAIR dehumidifiers.
Mode 1 is suitable for the following models:
Sentinel HD55 White dehumidifier Sentinel HD55 Blue dehumidifier
Sentinel HD90 dehumidifier Sentinel HDi90 dehumidifier
Sentinel HDi100 dehumidifier Sentinel HDi120 dehumidifier
Sentinel SLGR 1400X dehumidifier
Mode 2 is suitable for the following models:
Sentinel HD55 Gold dehumidifier Sentinel HDi65 dehumidifier
(Mode 1) (Mode 2)
Optional remote controller mode switching guide (Series 2)

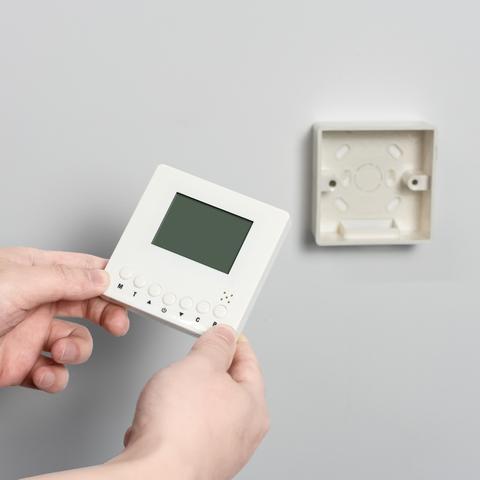

Step 1: Pry open the cover
Step 2: Pull out the red jumper cap and connect the pin holder according to your model
For example Sentinel, HDi65, and Sentinel HD55 Gold are connected to the WIFI New header, and other models are connected to the OLD holder.
Step 3: Close the back cover of the controller.
Remote Controller Mode Switching Guide>>>Download PDF

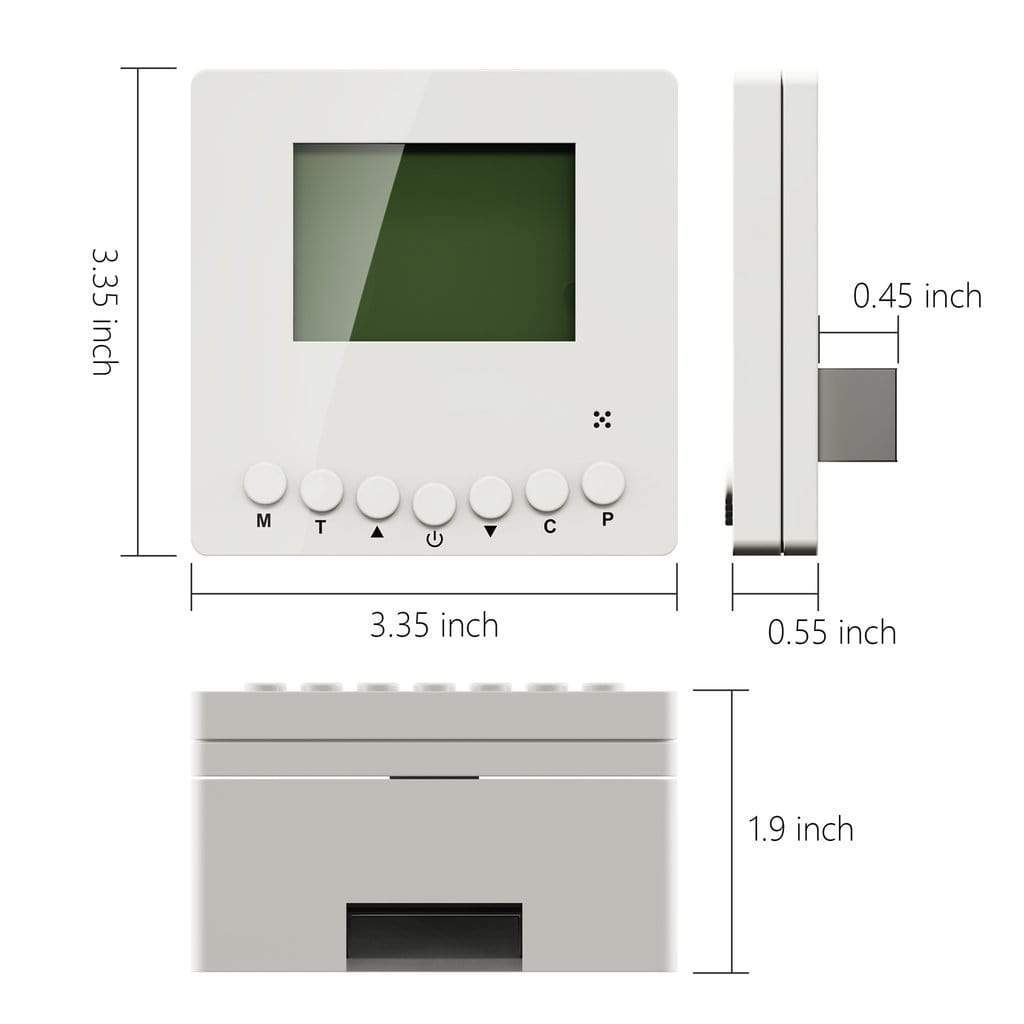

SPECIFICATIONS
Compatible with | Sentinel HD90, Sentinel HDi90, Sentinel HD55,
HDi100, HDi120, SLGR 1400X |
---|
- Remotely Control and Monitor your Dehumidifier for Basement
- Wire /Cord Length: 26 ft / 8m
- LCD Monitor, Simple Symbol Condition Indicator
- Function: Start/Stop Dehumidifier, Adjust Humidity Level, Dehumidification and Duct Mode Switch, Temperature Sensor, Continuous Mode, Drain Pump (if have) Control
- Currently only Support Alorair's Sentinel HD90, Sentinel HDi90, Sentinel HD55, HDi100, HDi120, and SLGR 1400X Series Basement Dehumidifier, Plug and Play
Guides & Documents
- User Guide Download Pdf

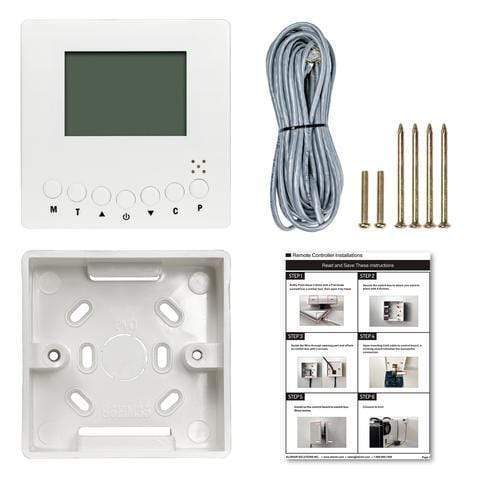

What's In The Box
1 - AlorAir® Remote Controller for Digital Humidity Temperature
1 - User Manual
